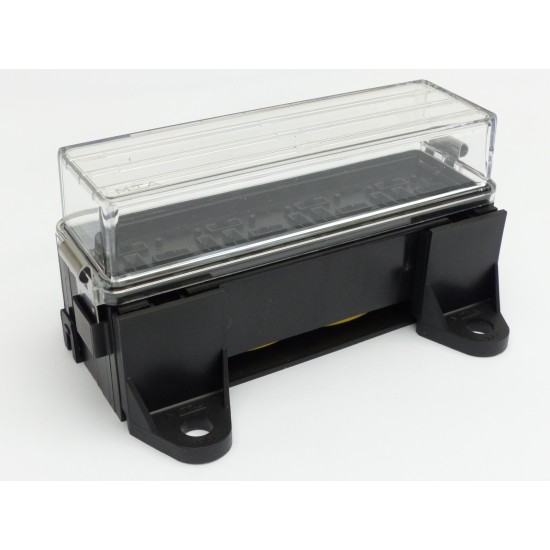

4 Way Relay Box
4 Way Relay Box
| Takes up to 4 relays, 4 or 5 blade type.Transparent cover with 'O' ring seal. Dimensions (excluding feet): 122mm x 45mm x 63mm high |
Can be interlocked with same or with 16 way fuse box (FBB16U) to form a single module of unlimited size. Cables enter under the side or underneath
through a hole in the bulkhead. Includes terminals.
Note: not suitable for relays with fixed bracket, flasher relays, or relays with fuse (R30AF & 72606)
Spare terminals are available : For 1-2.5mm2 cable FBL6. For 2.5-6mm2 cable FBL66
- Availability: In Stock
- Model: RB4U
- Weight: 0.32kg
£20.54
Ex Tax: £17.12
