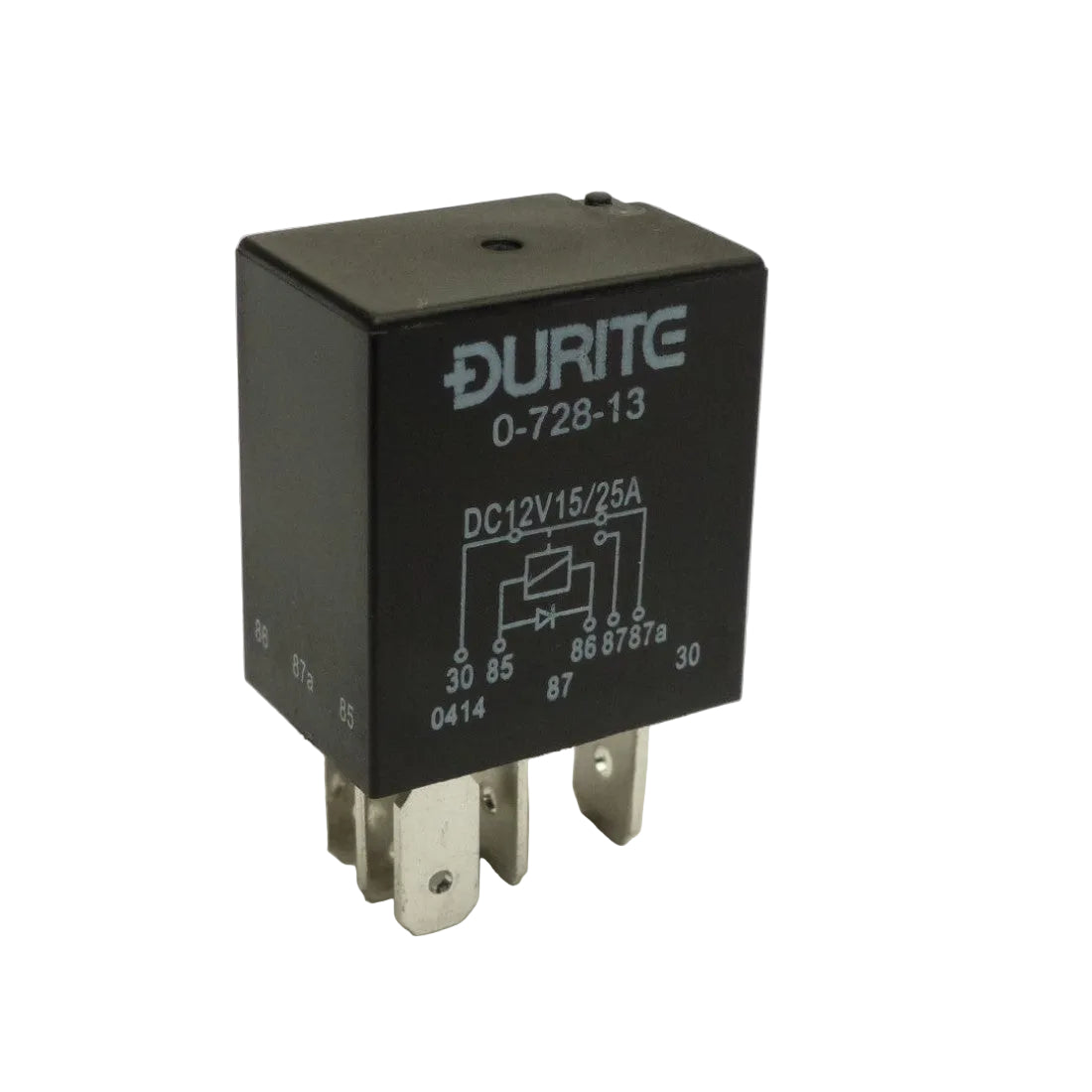

12V Micro Relays

These are smaller than the standard relays and have a different pin layout.
They contain a diode for sensitive circuit protection.

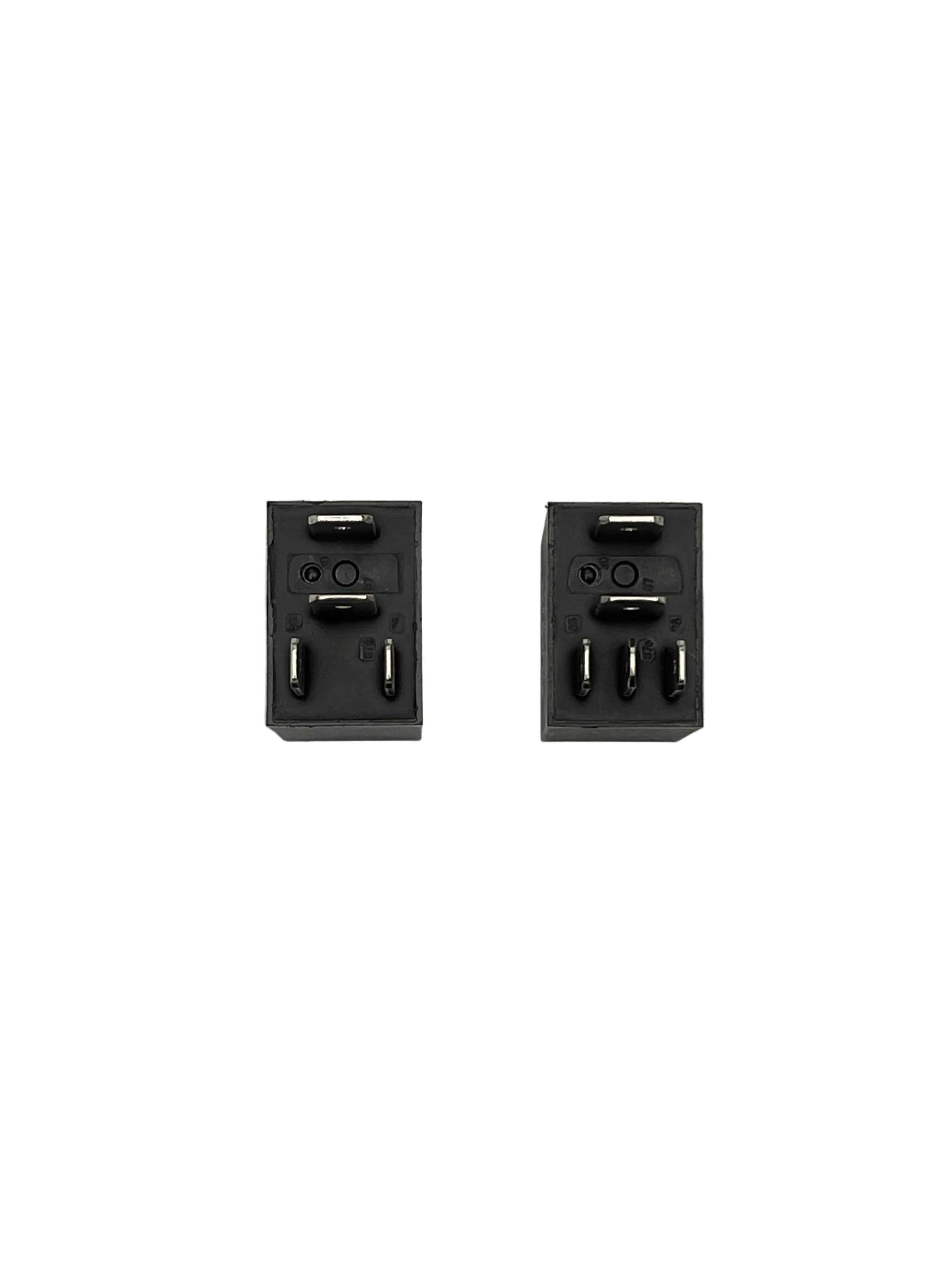

Available in 4 or 5 blade type.

REF MR15 & MR25

PLEASE NOTE THE POLARITY OF TERMINALS 85 & 86 ARE CRITICAL. TERMINAL 85 IS NEGATIVE AND 86 IS POSITIVE. FAILURE TO CONNECT THE RELAY WITH THIS POLARITY WILL RESULT IN DAMAGE TO THE RELAY.

Pins 30 & 87 are 6.3mm and pins 85, 86 & 87a are 4.8mm blade.
Relay dimensions: 23x15x25mm (excluding pins).

On MR15 terminal 87a is 15 amp, and terminal 87 is 25 amp.
